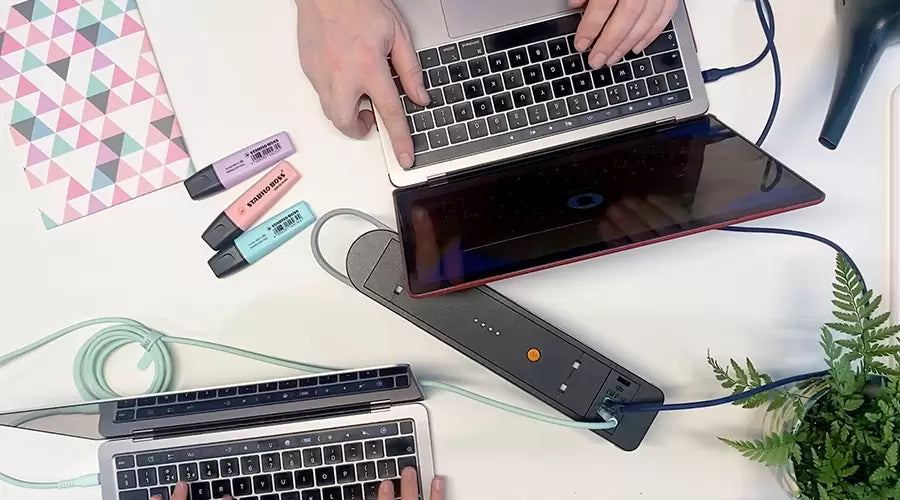

On the move or at your workstation, QIKPAC CARRY keeps you powered and productive for longer. With a commercial grade 240Wh battery, QIKPAC CARRY delivers up to 28 hours of laptop use, powering a workstation or training table for a full day.

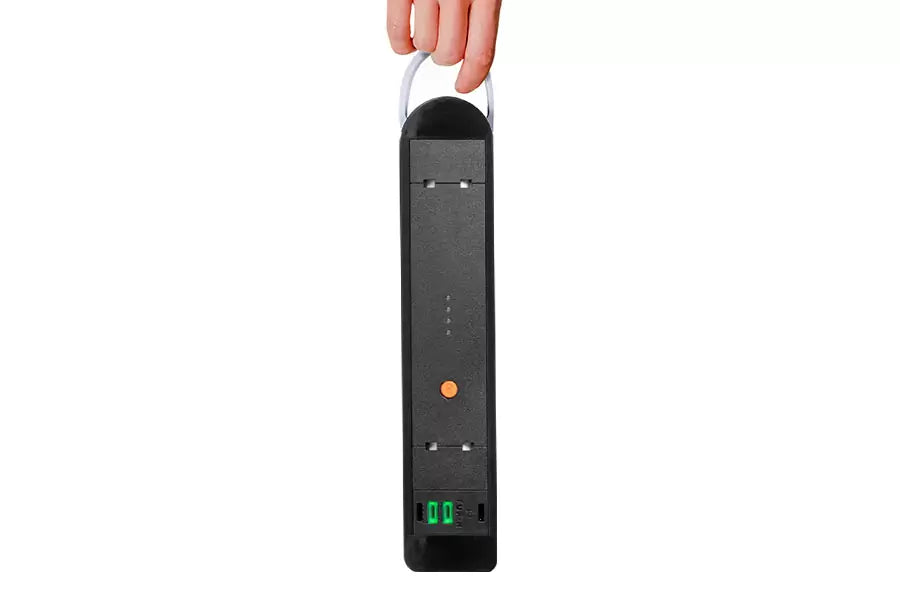

QIKPAC CARRY is ergonomically designed to be light and easy to carry without compromising on power allowing full flexibility and control to move around and work anywhere.
// WINNER OF THE ABA100 NEW PRODUCT INNVOVATION AWARD 2022
ANIMATE is a cable-free, modular mobile power solution designed for commercial spaces. Every component is commercial grade and certified safe by TUV.

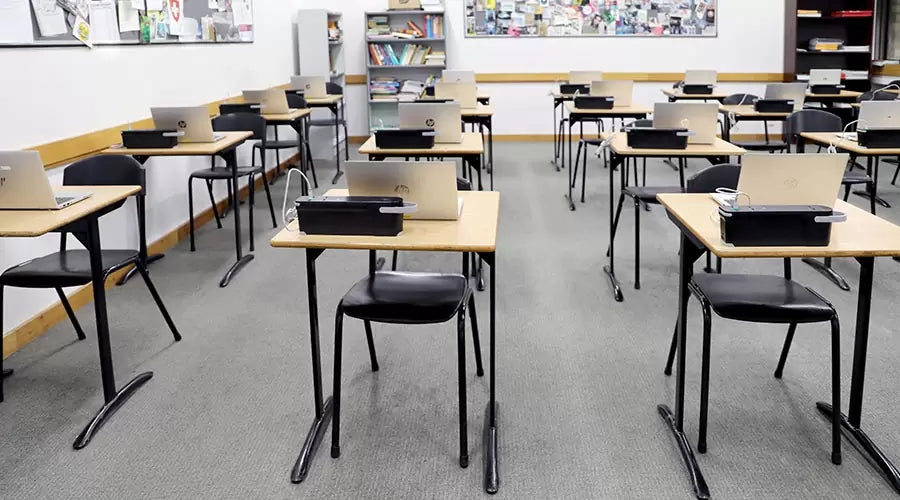

Designed for standalone use or integration into workstations and furniture, QIKPAC CARRY delivers uninterrupted power in multi-use commercial spaces.
// WORK ANYWHERE

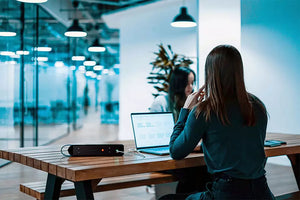

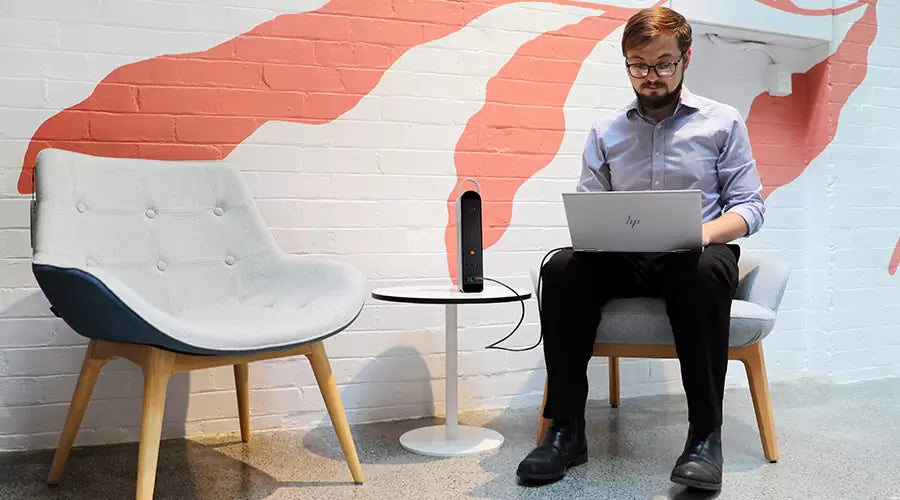

QIKPAC CARRY is ergonomically designed to be light and easy to carry without compromising on power. Its portability allows full flexibility and control to move around and work anywhere within the workspace, or to go offsite to meetings, cafes, or even a park, knowing that it will provide up to 28 hours of laptop power from a single charge.
// QIKDOC CONNECT

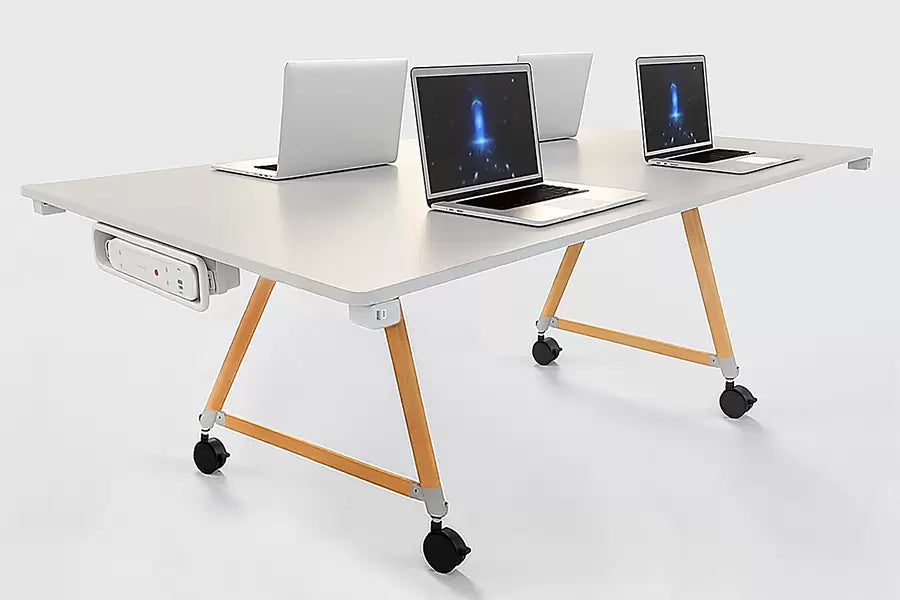

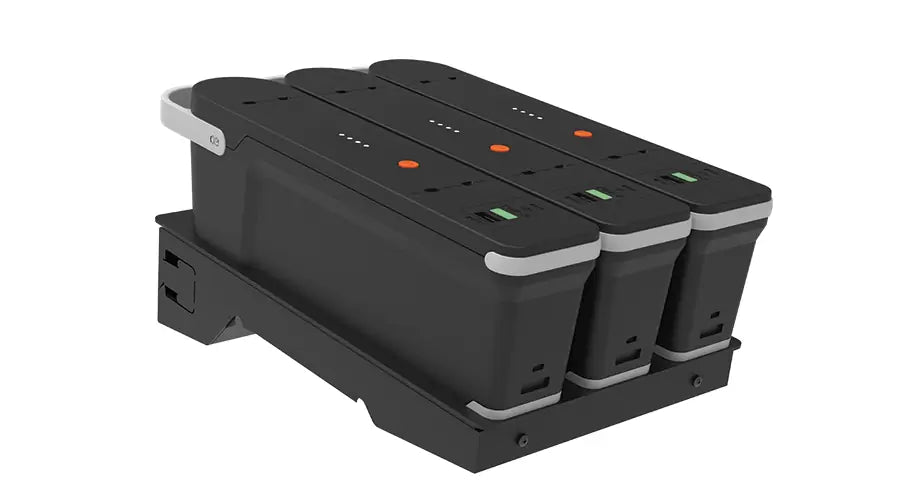

Dock QIKPAC CARRY into the purpose designed QIKDOC CONNECT to instantly power a workstation or an entire training table for a full day. QIKDOC ‘Connect’ is equipped with DC power in/out connectors, allowing QIKPAC CARRY to power USB sockets, monitors, wireless chargers, and even height-adjustment motors.
// QIKPAC CARRY CHARGING CART

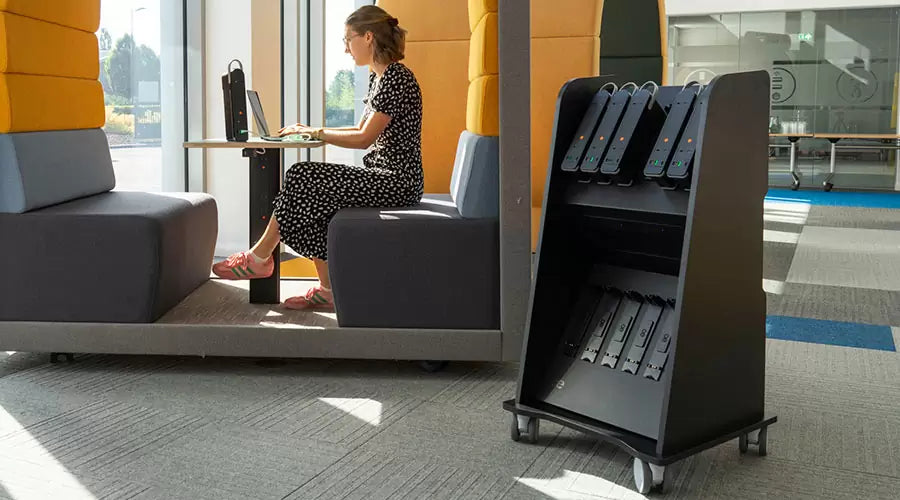

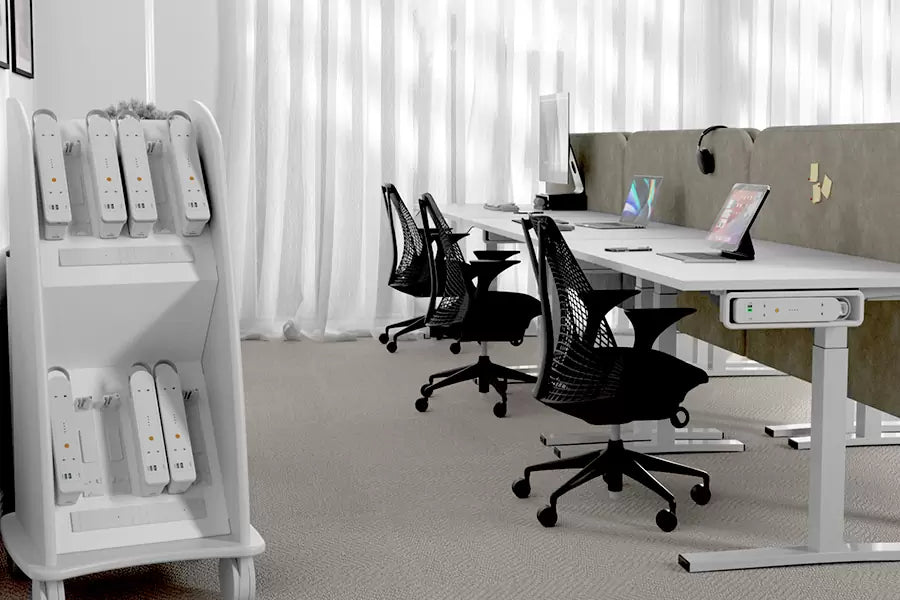

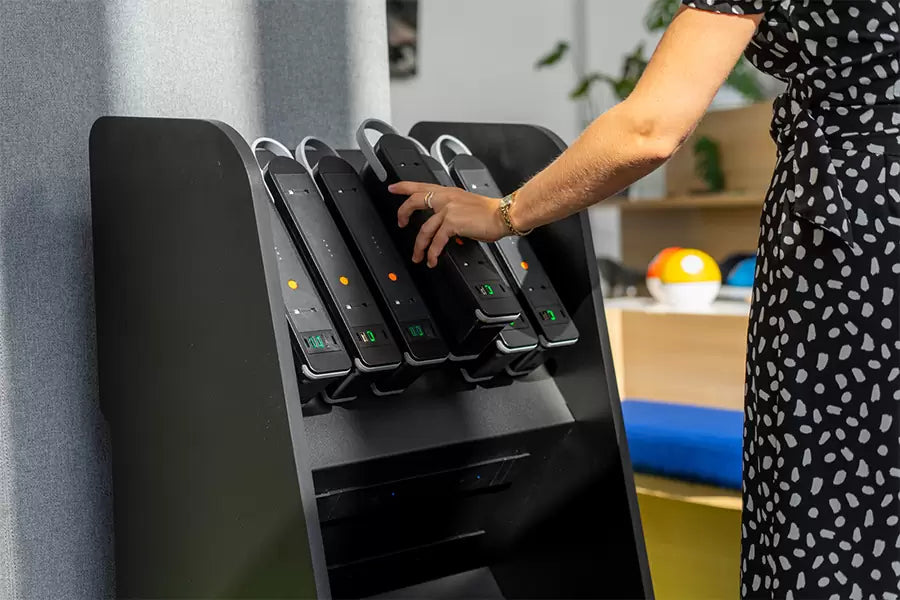

The ANIMATE CHARGING CART is a convenient charging and storage “home base” for OE’s QIKPAC CARRY mobile power solution.
Simply return used QIKPAC CARRY to the custom designed charging cart and take a newly charged one. Built in power level lights indicate the power available.
Technical Specifications
| Battery Capacity |
240Wh (Equivalent to 66 780mAh) |
| Useable Capacity |
200Wh |
| Output Voltage |
21.0V – 29.4V |
| Input Voltage |
30.0V (Maximum) |
| Maximum Output Current Per Port |
6A |
| Total Shared Maximum Ouput Current |
12A |
| Features |
Short Circuit Protection
Over Current Protection
Under Voltage Protection
Battery Overvoltage Protection
Unit Over Temperature Protection |
| Safety Standards |
IEC/UL 62368-1 (Safety)
IEC/UL 62133-2 (Li-ion Safety)
EN/IEC 61000-6-3 & 61000-6-1
(EMC)
FCC 15B (USA-EMC)
UN38.3 (Shipping) |
| Weight |
1.3kg |
| Operation Temperature |
10 – 35C |
| Charging Range |
5°C to 45°C |
| Discharging Range |
20°C to 60°C |
| Storage Temperature |
Up to 3 Months: Store between -20°C and 40°C Longer Duration : Between 10°C to 20°C (Ideal) QIKPAC should be stored at 40-60% charge (2 LEDs) in a low humidity environment (less than 70% RH) with no corrosive gases and no condensation on cells and charged yearly to keep them at this level. |
| Estimated Charge Cycles |
1,500 (With 70% capacity remaining, dependent on type of load and use) |
| Estimated Life Span |
5+ years |
|
|
| Charging Times |
(hours) |
| 1-2 batteries |
5 – 8 hours |
| 3 batteries |
8 – 11 hours |
Construction:
High strength fire retardant polycarbonate
Colours:
Black or white
Power cord options:
GST08 male to female interconnect cable
